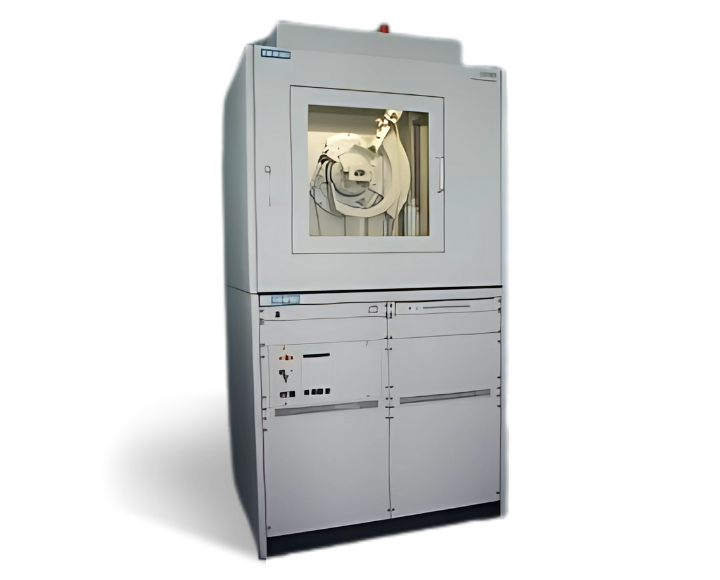

Siemens D5000

The Siemens D5000 has been our most popular refurbished model for a few years now and continues to offer the best value in advanced XRD analysis by far. These systems are extremely robust and inexpensive to operate without sacrificing their modular nature. We’re strong believers in this “workhorse” model and operate one for our in-house powder XRD work.

DURABLE
- Designed for continuous use. The 40-position autosampler allows for overnight operation.
COST-EFFECTIVE
- The D5000 is an ideal solution for basic to intermediate XRD on a budget
CAPABLE
- Phase Identification and quantification, Whole Pattern Fitting, Rietveld modeling, Crystallite size calculation, Films, Basic Texture with Phi axis
WORKHORSE
- These instruments are trusted by some of the most demanding labs for applications like industrial hygiene and geological analysis

Goniometer
- Theta/2Theta and Theta/Theta versions
- Independent control of each axis for grazing incidence and rocking curves
- 0.001°/step minimum step size. (0.0002° optional)
High-voltage generator
- Medium frequency (20KHz) design
- 2.7KW max power
- Manual controls (computer controll optional)
Source
- Standard air-insulated, short-anode X-ray tube
- Cu, Co, Cr, Mo, Ag anodes and various focal spot sizes available
Sample stages
- Fixed stage
- Rotating stage (synchronous)
- Phi-axis stage (stepper controlled rotation)
- 40-position autosampler with rotation
- Capillary state
Detection
- Standard scintillation counter (Diffracted-beam monochromator recommended)
- KSA SDD-150 energy-dispersive detector. Data collection speed increased 3-4x.
Software
- MDI Jade Standard or Pro versions
- ICDD Databases
Cooling
- Closed-loop water chillers
- Air or Water-cooled condensers
